Ai 5L Roto turn-key package
Ai 5L Roto turn-key package

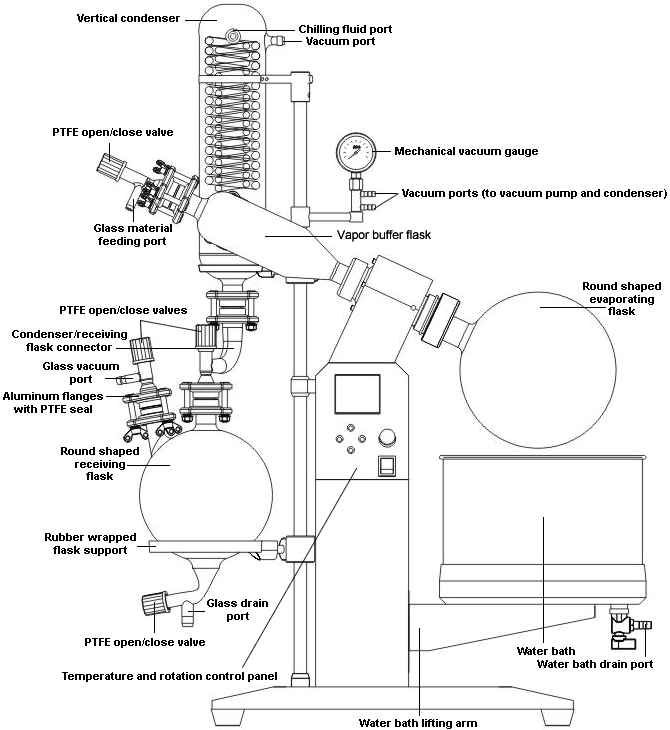

The newly re-designed Ai SolventVap 1.3-gallon/5L (evaporating flask capacity) series rotary evaporators come with all PTFE valves for solvent-resistant operations. Also come with them are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Included:
ULVAC DTC-41 1.6 cfm Dual-Stage Chemical-Duty Diaphragm vacuum Pump
Ai -30°C 10L Recirculating Chiller with 20L/Min Centrifugal Pump
Features
Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
Downward-condensing vacuum connection design ensures safe vacuum operation.
Motorized water bath lifting for precise control.
Easy, straight-forward visual operation with digital speed and temperature display.
PID temperature controller ensures accurate temperature control is maintained.
One year warranty on rotary evaporator except glassware and all sealing gaskets.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
